Working with custom input and output types

When building an agent, you must specify what types of input it should receive. This input can be either one of the standard types included with the SK Agents Framework or a type you define yourself.

Available Standard Types

  • BaseInput - A base input type containing chat history for chat-like interactions
sk_agents.ska_types.BaseInput

Bases: KernelBaseModel

The history of a chat interaction between an automated assistant and a human.

Source code in src/sk_agents/ska_types.py
106
107
108
109
110
class BaseInput(KernelBaseModel):
    """The history of a chat interaction between an automated assistant and a
    human."""

    chat_history: list[HistoryMessage] | None = None

You also have the option to specify a custom output type which will be used in REST calls as the output format for the response from the agent.

To define either a custom input or output type, simply create a new Python file and create classes which inherit from KernelBaseModel in the semantic_kernel.kernel_pydantic package. Once defined, you can specify the types in your agent's configuration file.

REST Output

When invoking an agent using the REST endpoint, your output will always follow the below format:

{
  "token_usage": {
    "completion_tokens": 0,
    "prompt_tokens": 0,
    "total_tokens": 0
  },
  "extra_data": {},
  "output_raw": "string",
  "output_pydantic": "null or user-defined output type"
}
extra_data provides a mechanism by which plugins can return additional data along with the output.

output_raw will contain the raw output from the agent, as a string.

If you have defined a custom output type, the output_pydantic field will contain the output in the format of your defined class.

Note: It is likely that future versions of the Framework will do away with the redundant output fields and your output will be either the raw string (if no custom output type was defined) or the output in the format of your defined class.

Streaming Output

When invoking an agent using the streaming endpoint, the output will always be the raw text output as structured output would not make sense in the streaming context.

extra_data, if populated, will be sent as a final message after all other text has been sent. The message will be in the format of:

{
  "extra_data": {
    "key": "value",
    ...
  }
}

Note: Currently, token usage metrics are not available via the streaming endpoint as it is not currently supported for any models by Semantic Kernel. There is planned support for this, however, so it will likely be included in a future version.

Number Adder Example

For example, if we wanted to create an agent which adds two numbers together, and returns the result, we could define input and output types which looked like the following:

# custom_types.py
from semantic_kernel.kernel_pydantic import KernelBaseModel

class NumbersInput(KernelBaseModel):
    number_1: int
    number_2: int

class AddOutput(KernelBaseModel):
    result: int

In the agent's configuration file, we would specify the input and output types by setting the input_type and output_type fields.

apiVersion: skagents/v1
kind: Sequential
description: >
  A number adder
service_name: AdderAgent
version: 0.1
input_type: NumbersInput
output_type: AddOutput
spec:
  agents:
    - name: default
      role: Default Agent
      model: gpt-4o
      system_prompt: >
        You are a helpful assistant.
  tasks:
    - name: action_task
      task_no: 1
      description: Add two number
      instructions: >
        Add the following two numbers together
        {{number_1}} {{number_2}}
      agent: default

Finally, to let the Framework know where our custom types have been defined, we'll need to set an environment variable defining the location of our custom types file:

TA_API_KEY=<your-API-key>
TA_SERVICE_CONFIG=demos/02_input_output/config.yaml
TA_TYPES_MODULE=demos/02_input_output/custom_types.py

Now, when we run the agent with the above environment file:

$ fastapi run src/sk_agents/app.py

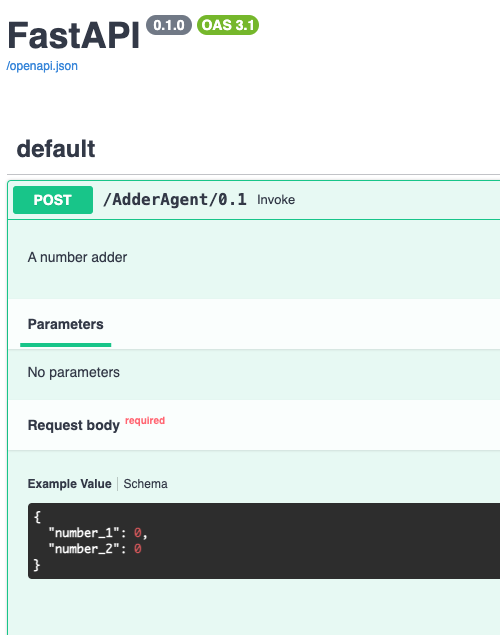

We'll see that the request payload now matches our defined input type: Request Payload

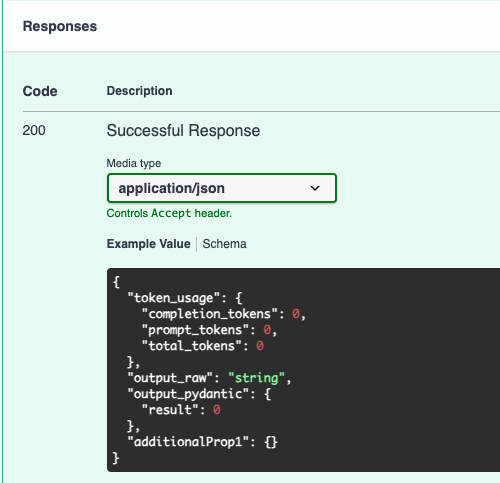

Additionally, we'll see that the response payload contains a key called output_pydantic which matches the format of our defined output class.

Response Payload
