Plugins

Plugins are a concept unique to Semantic Kernel, in the agent framework space. Rather than giving agents access to individual tools, SK introduces the concept of plugins, which can be bundles of similar tools, thus more closely aligning with traditional concepts in software development around the creation of APIs.

In the SK Agent Framework, plugins can be included in two ways: 1. Local/Custom Plugins 2. OpenAPI API Plugins

Local/Custom Plugins

Local plugins are plugins that are created by the user and are specific to this agent. To create one, simply create a new Python file which will be included with your agent. The file should contain one or more plugin classes which are derived from BasePlugin in the ska_types module and which contain methods annotated with the kernel_function annotation from Semantic Kernel (semantic_kernel.functions.kernel_function_decorator).

Authorization & Extra Data

Your custom plugin classes MUST inherit from BasePlugin. This base class has an __init__ method which accepts two arguments:

  • authorization which contains the value contained in the Authorization header received from the client, if one is present. You can access the authorization token (if present) via self.authorization.
  • extra_data_collector which contains an instance of ExtraDataCollector which can be used to add extra data to the response. Extra data comes in the format of key/value pairs. Use the add_extra_data method within the plugin to include extra data.

If you're overriding the __init__ method in your custom plugin, make sure to call the base class's __init__ method with the authorization and extra_data arguments.

Example

In this example, we've defined a WeatherPlugin which contains two annotated methods gat_lat_lng_for_location and get_temperature. The first method takes as input a location search string and returns the latitude, longitude, and timezone of the location. The second method takes as input the latitude, longitude, and timezone of a location and returns the low and high temperatures.

...
class WeatherPlugin(BasePlugin):
   @staticmethod
   def _get_temp_url_for_location(lat: float, lng: float, timezone: str) -> str:
      return f"https://api.open-meteo.com/v1/forecast?latitude={str(lat)}&longitude={str(lng)}&daily=temperature_2m_max,temperature_2m_min&temperature_unit=fahrenheit&wind_speed_unit=mph&precipitation_unit=inch&timezone={timezone}&forecast_days=1"

   @staticmethod
   def _get_loc_url_for_location(self, location_string: str) -> str:
      return f"http://api.geonames.org/searchJSON?formatted=true&q={location_string}&maxRows=1&lang=en&username=tealagents&style=full"

   @kernel_function(
      description="Retrieve low and high temperatures for the day for a given location"
   )
   def get_temperature(
           self, lat: float, lng: float, timezone: str
   ) -> TemperatureResponse:
      url = WeatherPlugin._get_temp_url_for_location(lat, lng, timezone)

      response = requests.get(url).json()
      if response:
         response_int: TemperatureResponseInt = TemperatureResponseInt(**response)
         return TemperatureResponse(
            low=response_int.daily.temperature_2m_min[0],
            high=response_int.daily.temperature_2m_max[0],
         )
      else:
         raise ValueError(f"Error retrieving temperature")

   @kernel_function(
      description="Retrieve the latitude, longitude, and timezone for a given location search string"
   )
   def get_lat_lng_for_location(self, location_string: str) -> LocationCoordinates:
      url = WeatherPlugin._get_loc_url_for_location(self, location_string)

      response = requests.get(url).json()
      if response:
         response_int: CoordsResponse = CoordsResponse(**response)
         return LocationCoordinates(
            latitude=response_int.geonames[0].lat,
            longitude=response_int.geonames[0].lng,
            timezone=response_int.geonames[0].timezone.timeZoneId,
         )
      else:
         raise ValueError(f"Error retrieving location coordinates")

Once the custom plugin has been defined, you need to make it available to a configured agent in your agent configuration file. Do this by populating the plugins portion of the agent configuration, which takes a list of defined plugins.

...
    spec:
      agents:
        - name: default
          role: Default Agent
          model: gpt-4o
          system_prompt: >
            You are a helpful assistant.
          plugins:
          - WeatherPlugin
...

Finally, we need to update our environment to specify the python file which contains the custom plugin.

TA_API_KEY=<your-API-key>
TA_SERVICE_CONFIG=demos/03_plugins/config.yaml
TA_PLUGIN_MODULE=demos/03_plugins/custom_plugins.py

And that's all you need to do. In this example, the agent is a chat agent, similar to example 1, but now it has the ability to retrieve the temperature for a specified location.

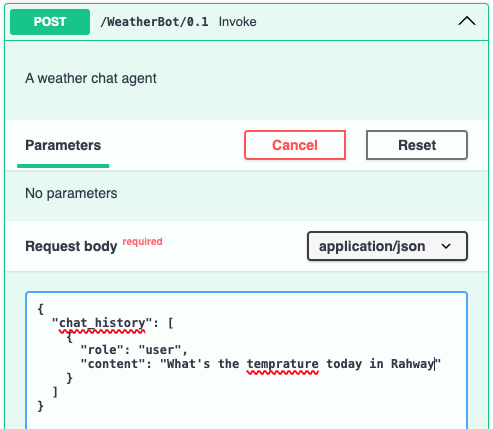

Request

Response
